Huihe India is one of the world’s leading manufacturers of Blowing, Filling & Capping process for beverages using the technology of Combi Bloc. Blower, Filler and Capper combined to one block, improves sanitary conditions, reduce cross contamination, increase running efficiency, and reduce energy consumption.

In today’s fast-paced and highly competitive manufacturing landscape, efficiency, accuracy, and scalability are essential for sustainable operations. Liquid filling and packaging machines have therefore become a critical requirement for the food and beverage industry, enabling automated container filling, precise sealing, and seamless preparation for distribution.

Whether your production involves bottled Water, Carbonated Beverages, Alcoholic Drinks, Edible Oils, or Industrial Liquids and Chemicals, selecting the right Liquid Filling and Packaging solution can significantly enhance productivity, ensure consistent quality, and transform overall manufacturing performance.

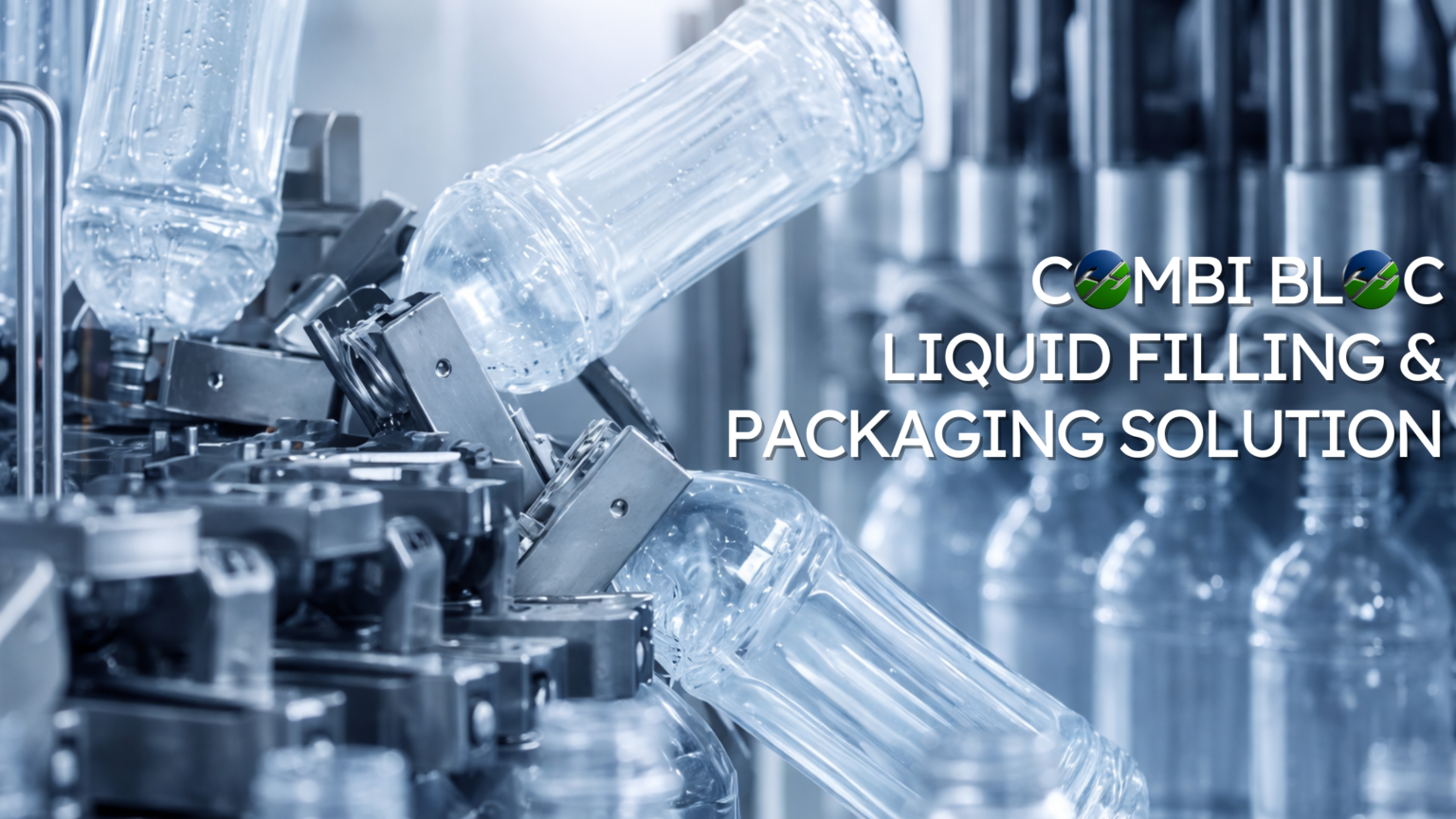

Combi bloc Huihe India

End-to-End Process Flow: Optimized Engineering at Every Stage

  1. Preform loading 2. Heating Phase 3. Blow molding 4. Filling Process5. Capping Operation6. Final Bottle Discharge

Working process:

  1. Preform feed-in and unscrambling

Our system uses a globally proven preform feeding and unscrambling technology to ensure high efficiency and damage-free handling. Preforms are lifted by an elevator, automatically aligned by synchronized inclined cylinders, and any misaligned preforms are returned to the hopper through a star-wheel system for continuous, operator-free operation.

  1. Heater

Any preforms not properly positioned are collected by a star wheel and returned to the hopper for reprocessing. This fully automated process ensures continuous operation with high efficiency, while maintaining product integrity — with no risk of scratching or damage to the preforms.

  1.  Blowing unit

The process begins with PET preforms, these preforms are then transferred to the blowing Line within the Combi Bloc system.

The preform is stretched and inflated with compressed air into the desired bottle shape using a blow mold.

  1. Filling unit

The filling process follows a gravity-based method. As the bottle mouth rises, it opens the filling valve, initiating product flow. Filling continues until the rising liquid reaches and seals the air return hole, signaling the completion of the fill. The bottle then descends, disengaging from the valve and moving forward in the line.

  1. Capping unit

The capping heads perform both rotational and revolutionary movements. The system executes a series of synchronized actions — including cap pickup, cap sleeving, cap screwing, and cap release — to complete the capping cycle efficiently.

Once capped, bottles are smoothly transferred via the exit star wheel onto the bottle-out conveyor, where they are conveyed out of the Combi Block system.

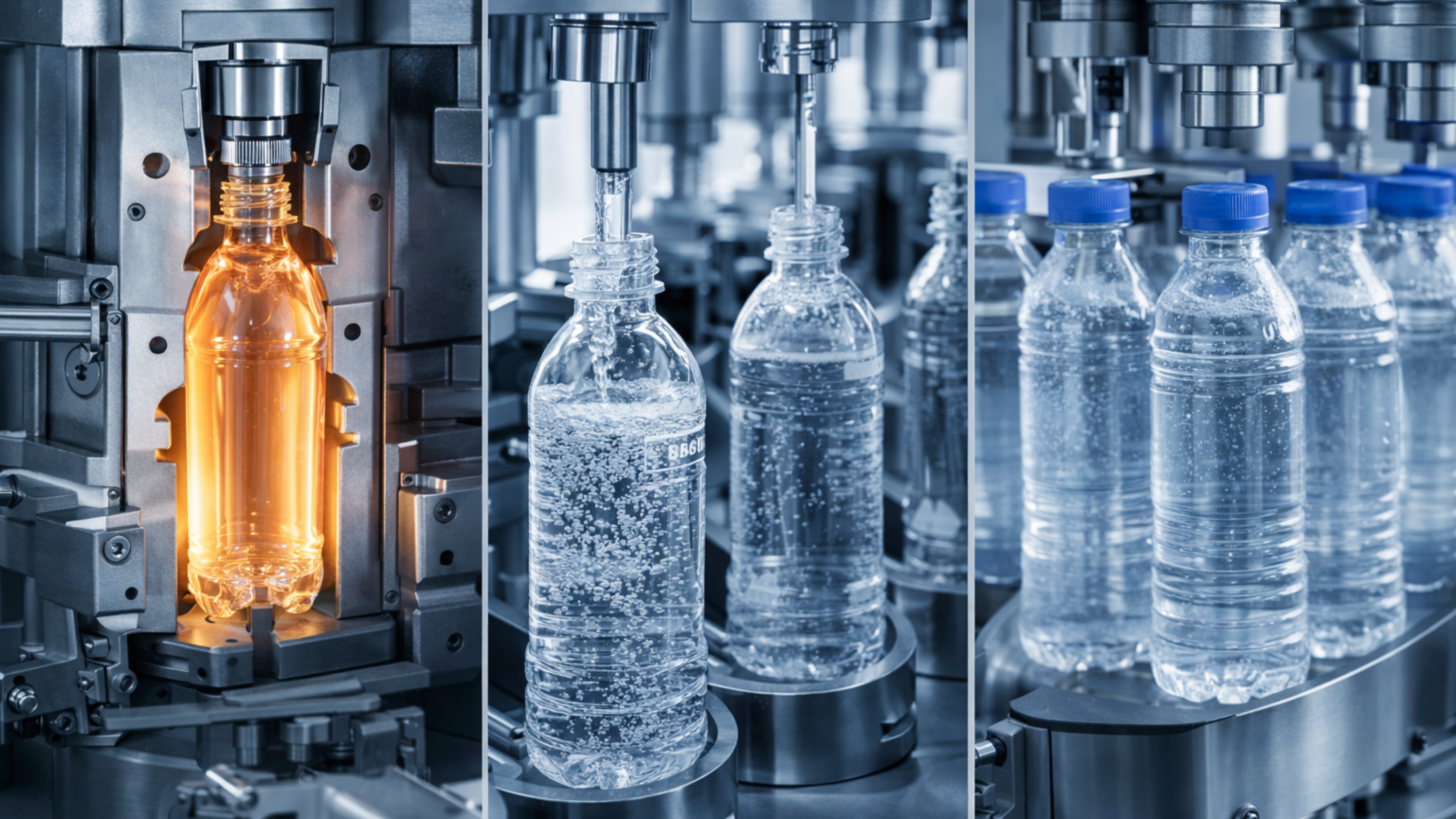

Combi Bloc | Huihe India

Key Benefits of our Combi Bloc Solutions

  • Space Efficiency: Combining multiple stages of production into a single unit reduces the footprint, making it ideal for manufacturers with space constraints.
  • Reduced Labor Costs: Automation at every level minimizes the need for human involvement, leading to significant cost savings.
  • Faster Production Speed: A streamlined production cycle allows for enhanced output, ensuring greater efficiency.
  • No Rinsing Required: Saves up to 30% of RO water compared to conventional methods.
  • Lower Power Consumption: Reduces power costs by 30-35%, making operations more sustainable.
  • Decreased Air Consumption: Uses up to 30% less air compared to traditional production lines.

Combi Bloc ! Huihe India

How to Select the Right Liquid Filling and Packaging Solution for Your Business?

When selecting a liquid filling and packaging machine for your business, the following key factors should be carefully evaluated:

1. Type of Liquid
The selection of the filling machine depends primarily on the liquid’s viscosity and characteristics. For example, carbonated beverages require specialized filling systems designed to handle pressure and foam control, while non-carbonated products can be processed with standard PET bottle filling solutions.

2. Production Speed and Capacity
High-volume operations require high-speed, fully automatic filling machines to consistently meet production targets and market demand.

3. Container Size, Shape, and Material
Consider the range of containers used in your production. The filling system should be compatible with different bottle sizes, shapes, and materials, such as PET bottles or other packaging formats.

4. Cost and Long-Term Reliability
While investment cost is an important consideration, priority should be given to machine quality, durability, and proven performance to ensure long-term operational reliability.

5. Integration with Existing Equipment
If you already operate a production line, ensure the new filling machine can be seamlessly integrated with your current equipment

 Shaping the Future of Your Production Line with Huihe India

Whether you are looking for Greenfield projects or a large-scale manufacturer, selecting the right Liquid Filling and Packaging machines is essential to remain competitive and meet growing market demands. The right solution helps maintain a cleaner and more efficient production line, ensures consistent product quality, and supports sustainable business growth in an increasingly demanding industry.

Huihe India is committed to revolutionizing beverage packaging solutions with cutting-edge technology and unparalleled service. Partner with us for efficient, cost-effective, and innovative solutions that meet global standards!
